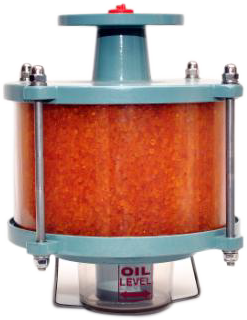

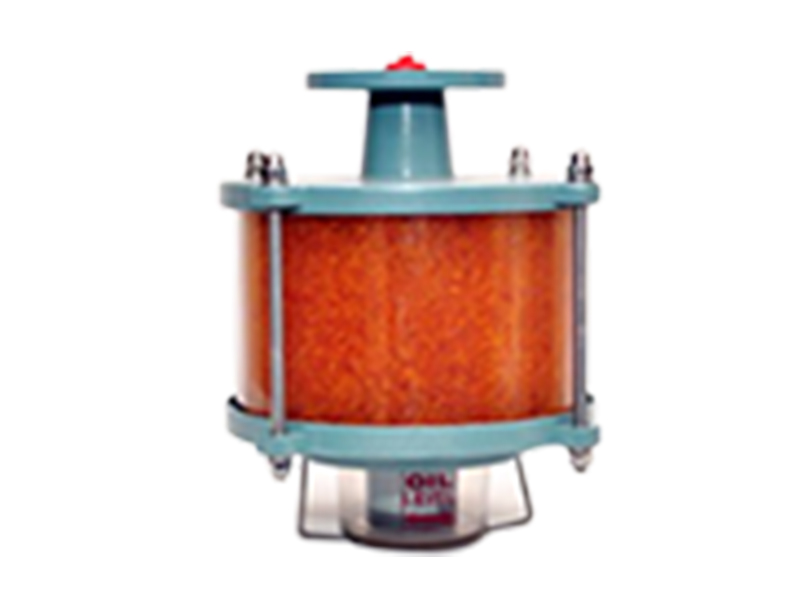

Transformer Orange Silica Gel Breather:
Breathers provide an economic and efficient means of controlling the level of moisture entering electrical equipment during the change in volume of the cooling medium and/or airspace caused by temperature gradients. We supply breathers upto the capacity of 2000kva Transformers.
Type: - Clear View Type ORANGE SILICA GEL BREATHER
- Aluminum Body ORANGE SILICA GEL BREATHER
Size Available : - 120-gm, 250-gm, 500-gm, 1-kg, 1.5-kg, 2-kg, 3.3-kg, 5-kg, 6-kg, 8-kg, 10-kg, 15 kg
EXCLUSIVE FEATURES OF OUR SILICA GEL BREATHER :-
1.Body and Oil Cup is made out of Transparent yet Unbreakable UV Proof Polycarbonate Material.
2.Top & Bottom are made of CRCA Sheet & joined with body by Specially Designed Rubber Gaskets & Studs.
3.UV Proof Powder Coated External Finish. (With seven tank not Phosphate Cleaning Process.)
4. Silica Gel Removing & Refilling method is Specially Designed to avoid Skilled Labor Requirement at site and consequent air Leakage also.
BREATHING PROCESS OF TRANSFORMER:-
Breathing is the process where the transformer Breather-In or Breather our the air from its body due to thermal contraction & expansion of oil mass. When the transformer is loaded or unloaded, the oil temperature inside the transformer tank rises or falls accordingly the air pressure inside the tank changes by either breathing in or breathing out the air. This phenomenon is called "Breathing" of the transformer. Now, the air which is being breathed in contains either dust particles and/or humidity that change the dielectric strength of the oil. For proper functioning of transformer, it is absolutely necessary that dielectric strength of transformer oil remains unimpaired. Hence, it is necessary that, the air entering into the transformer is free from moisture & dust particles.
FUNCTION OF SILICA GEL BREATHER :-
The sole function of Silica Gel Breather is to dehydrate (remove moisture) the air & to remove dust particles of the air breathed in by the transformer.
